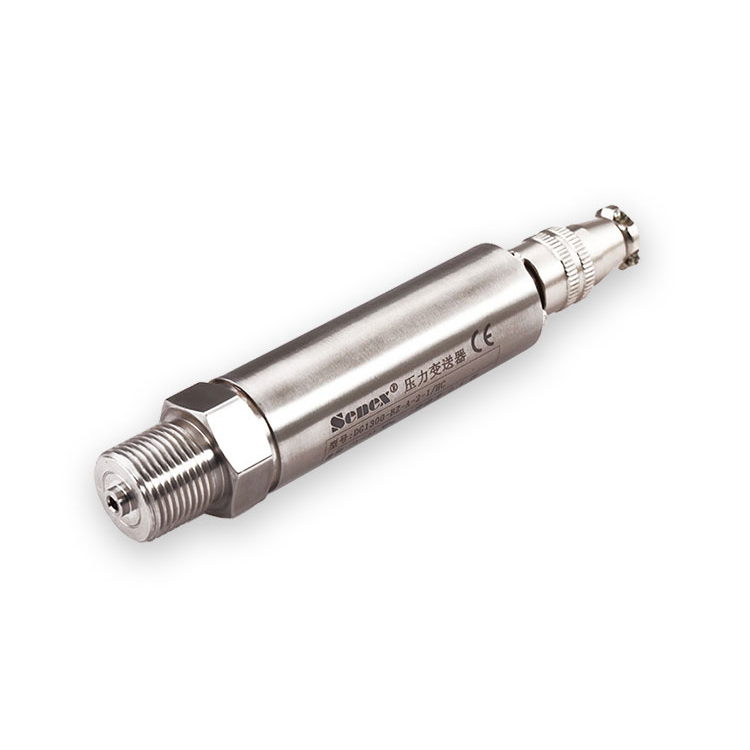

SENEX DG1300-PJ Universal Pressure Sensor

Measuring range: 5kPa~70MPa

Accuracy: 1%F.S

Output signal: 4-20mA (24V)

Process connection: M20X1.5 external thread (optional)

Electrical connection: Metal tail connector + cable outlet

Overload pressure: 2 times the measuring range

Operating temperature: -20~85℃

Storage temperature: -40~90℃

Service life: greater than 10 million pressure cycle loadings

Protection level: IP65, IP67

Product certification: SIL certification, voluntary explosion-proof CQC certification, ISO system certification, CE certification
